Inicio /Productos/Calderas de vapor de combustible sólido/Hotel Factory Horizontal Thermal Oil Boiler YYQW Gas Thermal Liquid Heater Hot Oil Boiler Price

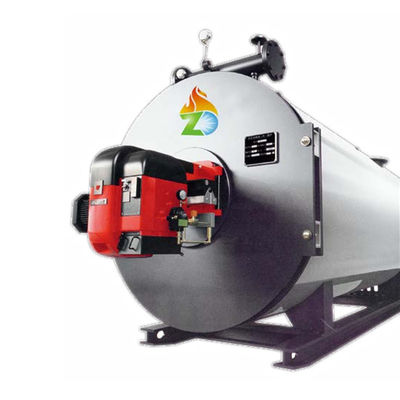

Hotel Factory Horizontal Thermal Oil Boiler YYQW Gas Thermal Liquid Heater Hot Oil Boiler Price

1.0 Units
MOQ
Hotel Factory Horizontal Thermal Oil Boiler YYQW Gas Thermal Liquid Heater Hot Oil Boiler Price
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 2 years
Core Components: NoEnName_Null
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: Fire Tube
Pressure: Low Pressure
Steam Production: Max. 4t/h
Style: Horizontal
Fuel: Gas&Oil-fired
Output: hot oil
Dimension(L*W*H): Depends on the capacity of boiler
Weight: Depends on the capacity of size
Warranty: 2 years
Key Selling Points: Easy to Operate
Product name: YY(Q)W oil (gas) organic heat carrier boiler
Keywords: Easy to operate
Application: Industrial Production
Material: Special Boiler Steel Plate
Application Field: Building Materials
Function: Multifunctional
Color: Customers Requirment
Thermal efficiency: ≥80
Rated working pressure: 0.6MPa
Operation: Easy Operation
Información básica
Pago y Envío Términos
Packaging Details: Selling Units:Single item Single package size: Depends on the capacity Single gross weight:Depends on the capacity Package Type:customized
Supply Ability: 500 Unit/Units per Year
Descripción de producto
Product Description
1. The heat exchange surface of the boiler adopts spiral dense discharge coil structure and three return structure of flue gas. Optimize space heat transfer intensity and strengthen convective heat transfer. 2. The heating surface is composed of double-layer or multi-layer spiral closely arranged coils. The inner coil is a combustion radiation heat exchange surface, and the gap between the inner coil and the middle coil or the outer coil forms a hot flue gas heat exchange surface. 3. Air heat exchanger or water / steam heat exchanger can be arranged at the tail of the boiler for waste heat absorption. The heating area is sufficient to reduce the exhaust gas temperature of the boiler and improve the thermal efficiency of the boiler. 4. High quality refractory and thermal insulation materials are used, which have high heat resistance, good thermal insulation effect, reduce heat loss and improve thermal efficiency. 5. The boiler heat exchange structure is matched with the burner to achieve high combustion efficiency and low pollutant emission, so as to ensure that NOx emission meets the environmental emission requirements of the place where the boiler is used.
Model YYW/YQW Rated Thermal Power 120-29000 KW
Design Pressure 1.1 Mpa
Working Pressure 0.8 Mpa
Medium Outlet Temperature ≤350 C
Fuel Light Oil,Heavy Oil,Natural Gas,Lpg,Lng,Cng,Diesel etc Application
Chemical,Oil,Petrochemical,Textile,Printing,Rubber,Carton,Plywood,Asphalt,Cement, etc
Product Datasets
MODEL
YY(Q)W- 120Y(Q)
YY(Q)W- 240Y(Q)
YY(Q)W- 350Y(Q)
YY(Q)W- 500Y(Q)
YY(Q)W- 700Y(Q)
YY(Q)W- 1000Y(Q)
YY(Q)W- 1200Y(Q)
YY(Q)W- 1400Y(Q)
Rated power(KW)
120
240
350
500
700
1000
1200
1400
Design pressure(Mpa)
1.1
Rated working pressure(Mpa)
0.8
Highest working temperature(℃)
320
Furnace oil volume(m3/h)
0.1
0.21
0.3
0.4
0.56
0.8
1.0
1.3
Circulation oil
volume(m3/h)
9.6
19.4
28
32
60
65
80
90
Pipe connection diameter(DN)
40
50
80
80
100
125
125
125
Thermal Efficiency (%)
～95
Size (m)
1.6x1.1
x1.52
2.5x1.4
x1.5
2.56x1.53x1.57
2.8x1.68
x1.68
3.24x1.47
x2.26
3.39x1.75
x2.36
4.07x2.1
x2.2
4.53x2.4
x2.35
Weight (T)
2
2.9
3.7
4.5
4.9
5.5
6.5
7.5
MODEL
YY(Q)W- 1800Y(Q)
YY(Q)W- 2100Y(Q)
YY(Q)W- 2400Y(Q)
YY(Q)W- 3000Y(Q)
YY(Q)W- 3500Y(Q)
YY(Q)W- 4200Y(Q)
YY(Q)W- 4700Y(Q)
YY(Q)W- 6000Y(Q)
Rated power(KW)
1800
2100
2400
3000
3500
4200
4700
6000
Design pressure(Mpa)
0.9
Rated working pressure(Mpa)
0.8
Highest working temperature(℃)
320
Furnace oil volume(m3/h)
1.5
1.7
2
2.4
3
4
4.5
7.8
Circulation oil
volume(m3/h)
100
120
160
200
200
220
250
320
Pipe connection diameter(DN)
150
150
150
150
200
200
200
250
Thermal Efficiency (%)
～95
Size (m)
4.4x2.05
x2.45
5.1x2.2
x2.5
5.2x2.4
x3.0
5.83x2.94
x3.1
6.1x3.02
x3.2
7.0x2.63
x3.2
7.6x3.1
x3.2
8.3x3.2
x3.4
Weight (T)
10
11.5
12.5
18.5
19.5
22
26
30
MODEL
YY(Q)W- 7000Y(Q)
YY(Q)W- 8200Y(Q)
YY(Q)W- 9400Y(Q)
YY(Q)W- 10500Y(Q)
YY(Q)W- 12000Y(Q)
YY(Q)W- 14000Y(Q)
YY(Q)W- 18000Y(Q)
YY(Q)W- 23500Y(Q)
Rated power(KW)
7000
8200
9400
10500
12000
14000
18000
23500
Design pressure(Mpa)
0.9
Rated working pressure(Mpa)
0.8
Highest working temperature(℃)
320
Furnace oil volume(m3/h)
9.1
10.5
12
14
16
18
24
32
Circulation oil
volume(m3/h)
375
400
520
550
600
680
1000
1200
Pipe connection diameter(DN)
250
250
300
300
300
350
400
400
Thermal Efficiency (%)
～95
Size (m)
9.24x3.9
x3.5
5.1x2.2
x2.5
5.2x2.4
x3.0
5.83x2.94
x3.1
6.1x3.02
x3.2
7.0x2.63
x3.2
7.6x3.1
x3.2
8.3x3.2
x3.4
Weight (T)
42.5
11.5
12.5
18.5
19.5
22
26
35
Product manufacturing process
Application & Boiler case

Applicable industry Chemical industry, grease, petrochemical, textile, printing and dyeing, plastics, rubber, fiber, carbon, construction, cement, asphalt, metal, coating, wood processing, papermaking and printing, atomic energy industry, etc.

6 MKcal Heat transfer oil boiler

Fuel: Gas User’s site: Malaysia Capacity: 7000KW Application: Packing industry

4 MKcal Heat transfer oil boiler

Fuel: Gas User’s site: Indonesia Capacity: 4700KW Application: Synthetic fiber industry

2.5 MKcal Heat transfer oil boiler

Fuel: Gas User’s site: Pakistan Capacity: 3000KW Application: Coking industry

1.8 MKcal Heat transfer oil boiler

Fuel: Gas User’s site: Vietnam Capacity: 2100KW Application: Rubber industry

0.6 MKcal Heat transfer oil boiler

Fuel: Oil User’s site: Thailand Capacity: 700KW Application:Asphalt mixing

5 MKcal Heat transfer oil boiler

Fuel: Gas User’s site: Philippines Capacity: 6000KW Application: wood industry
Company Profile
Henan Zhongde Environmental Protection Technology Co., Ltd. is located in the beautiful Fu Cao Lou Industrial Park, Taikang County, on the Eastern Henan Plain. The company has a plant area of 80,000 square meters and more than 100 employees. It mainly engages in the R&D, manufacturing and sales of hot water boilers, steam generators, electric heating boilers, oil-fired gas steam boilers, and high and medium temperature hot blast stoves. Based on the manufacture of hot water boilers and steam generators, the company has established an industrial system integrating product development, engineering project design, equipment manufacturing, engineering installation, system commissioning, pre-sales, in-sales, and after-sales services. The company's products are not only sold in the domestic market, but also exported to more than 10 countries and regions including South Korea, Vietnam, Myanmar, Mongolia, the Philippines, and Indonesia. Excellent employees, advanced technology, sophisticated equipment, and strict management are the foundation for the company's continuous development and expansion and the products that can win the dependence of users.
Certifications
CE
CE
Boiler Manufacturing License
ISO9001
ISO14001
ISO45001
Our survice
Pre-sale service: 1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc. On-sale service: 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule. After-sales service: 1.provide full range of original spare parts. 2.Provide engineers abroad installation and commissioning service. 3.Held online or site training for boiler workers to ensure the safe operation. 4.Free maintenance and repair for one year and lifelong service.
