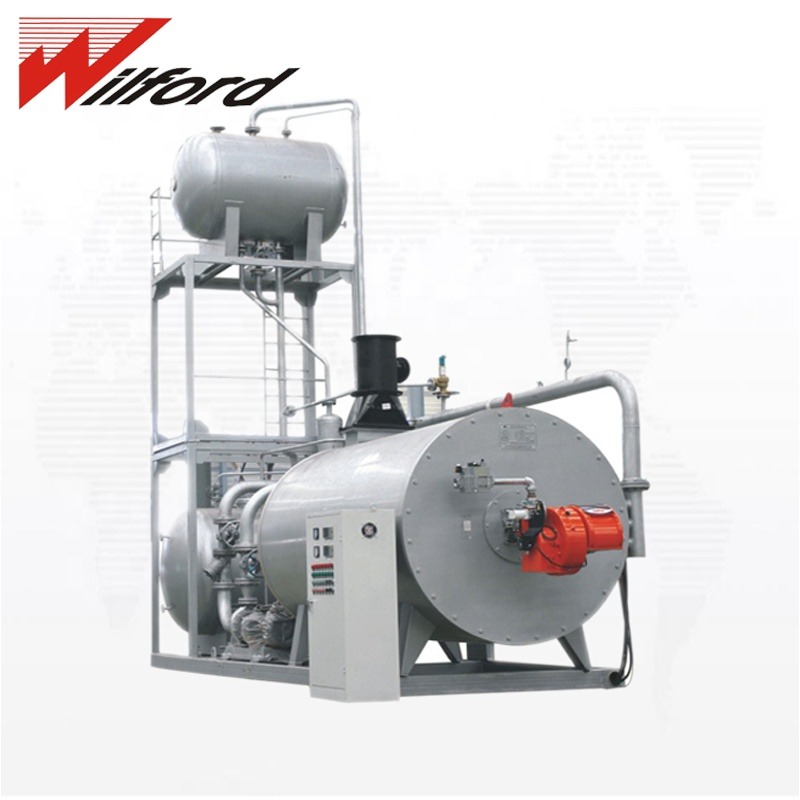

Horizontal Natural GasThermal Thermal Oil Heater Low Pressure Oil Boiler

1.0 set
MOQ
Horizontal Natural GasThermal Thermal Oil Heater Low Pressure Oil Boiler
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Applicable Industries: Hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Other
Condition: New, New
Type: Natural Circulation
Usage: Industrial
Structure: Fire Tube
Pressure: Low Pressure
Steam Production: 0
Style: Horizontal
Fuel: Gas-fired
Output: Hot Oil
Dimension(L*W*H): the models are different
Weight: the models are different
Warranty: 1 Year
Key Selling Points: High-accuracy
safe: yes
operation: full automatic
manufacturing capacity: factory
type of fyel: Oil/Gas/Diesel/Natural Gas
warrantly: one year
type of boiler: thermal oil boiler
After Warranty Service: Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Engineers available to service machinery overseas
Certificación: ASME,ISO,CE
Información básica
Certificación: ASME,ISO,CE
Pago y Envío Términos
Packaging Details: automatic oil steam boiler:wood case
Supply Ability: 25 Set/Sets per Month
Descripción de producto
Product Description

Natural GasThermal Oil heater low pressure Thermal oil boiler

Produt Introduction

YY(Q)W oil(gas)heating-conduction boiler makes heat carrier circulation through hot oil pump is fast mounted forced circulation oil (gas) fuel boiler.The heating surface structure is compact. Inside/middle/outside (or inside and out side ) closely-aligned round coils constitute the heating surface . Inside coil is radiation heating surface.Middle/outside coils as well as inside coils together from convection heating surface .Fuel burns in inside coils' combustion chamber -combustion and heat release.After radiation heating surface absorbs most heat, high temperature flue gas enters the convection heating surface to transfer heat. Finally low temperature flue gas exports directly through chimney to atmosphere .

Product Features

1.High heat efficiency ,special structure ,could keep total heat efficiency up to 100%.

2.The control of the oil temperature will be concise within the range from -1°C to +1°C.Under low working pressure of 0.8Mpa ,boiler could achieve working temperature of 320°C.

3.There's a connection for the inert gas on the front shroud and it could fill 3 times of the capacity of the furnace with inert gas within 15 minutes in case of emergency to protect it and thus extend the life span.

4.Fully shop-assembled ,save transportation cost and installation fees.

5.The boiler operates automatically and will get rid of misconduct .With a nuclear PLC ,the percentage will be adjusted automatically and the monitor will be ral time ,together with the chainining protection.

Technical Parameters

Description Unit 600 850 1200 1400 1800 2400 3500 4100 6000
Y(Q) Y(Q) Y(Q) Y(Q) Y(Q) Y(Q) Y(Q) Y(Q) Y(Q)
Rated thermal power (KW) KW/104kcal 600/50 850/75 1200/100 1400/125 1800/150 2400/200 3500/300 4100/350 6000/500
Heating efficiency (≥%) % 90 90 90 92 92 92 92 92 92
Design pressure Mpa 1 1 1 1 1 1 1.1 1.1 1.1
Medium highest temperature 350 350 350 350 350 350 350 350 350
Medium capacity of boiler 0.4 0.52 0.76 0.95 1.48 2.1 2.4 2.53 6.1
Medium circulation volume m³/h 80 80 100 100 160 200 200 200 300
DN of oil outlet DN 100 100 125 125 150 200 200 200 250
Whole system installed capacity Oil KW 30 40 40 45 50 70 70 70 150
Gas KW 30 40 40 45 50 70 70 70 150
Total weight of equipment KG 3530 4500 5600 6200 9500 10500 13500 16065 28850
External dimension Length mm 3650 4100 5500 5700 5900 6500 8000 8200 9000
Width mm 1500 1700 2100 2100 2100 2300 2400 2500 3200
Height mm 1870 2100 2400 2400 2550 2750 2900 3000 3600
Transport dimension Length mm 3250 3800 4600 4850 5100 5800 6800 7200 7800
Width mm 1500 1700 2100 2100 2100 2300 2400 2500 3200
Height mm 1870 2100 2400 2400 2550 2750 2900 3000 3600

Project Case

Company Profile

Certification

Exhibition

FAQ
Q: Are you a factory or a trading company?
A: We are a 20-year-old industrial boiler factory , specializing in gas oil diesel electric fired boilers.
Now we are one of leading industrial boiler manufacturers in China.

Q: What is the Warranty for the boilers?
A: Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new
parts for free.

Q: How long should we wait for delivery?
A. Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it
need more time.

Q: What about your payment term?
A: Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other
payment way.
